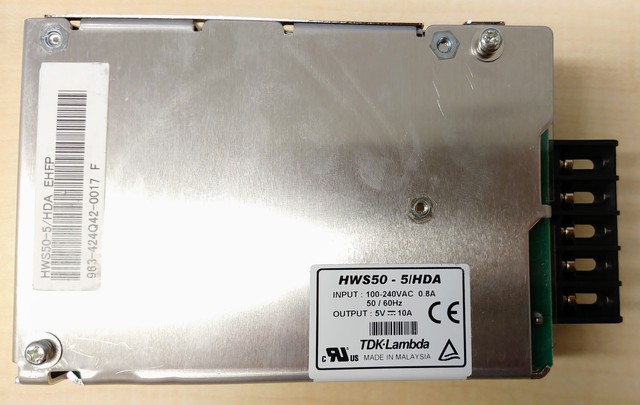

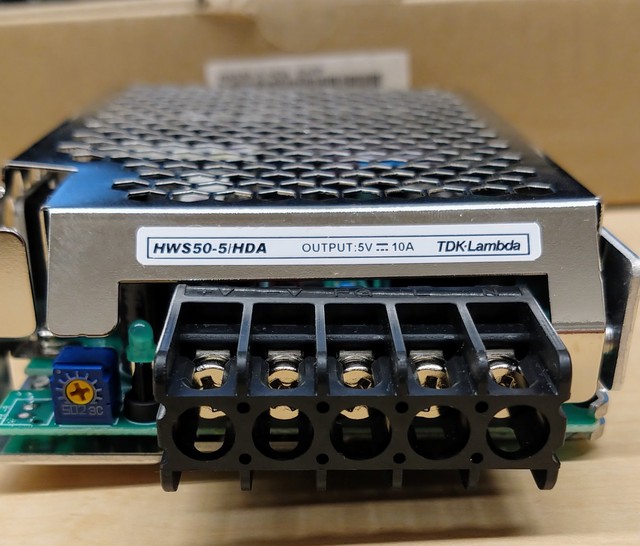

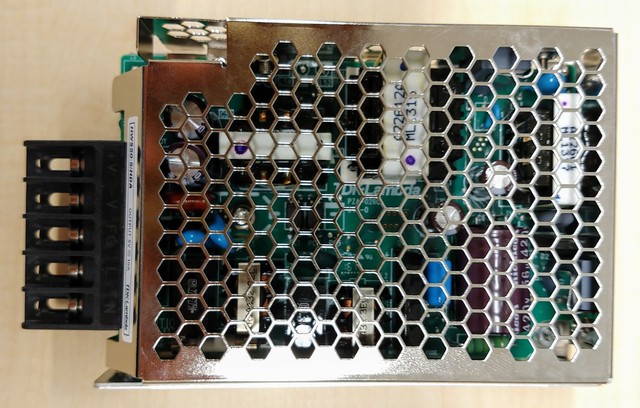

【TDKラムダ】HWS50‐5/HDA

¥7,200

*Tax included.

*Additional shipping charges may apply, See detail..

About shipping fees

The shipping fee for this item varies by the shipping method. Customers can choose the shipping method at time of purchase.

  • Yamato Transport

    Your delivery status can be checked online.

    Shipping Fees are the same all over country inside Japan ¥2,000

  • Yu-Pack

    Your delivery status can be checked online.

    Shipping Fees are the same all over country inside Japan ¥2,000

*Japan domestic shipping fees for purchases over ¥10,000 will be free.

I would like to be notified of restocking

Age verification

When it is restocked, we will notify you to the registered e-mail address.

Mail Address

Please allow the domains 「thebase.in」&「nishoko.com」so that you can receive our e-mail

I would like to be notified of restocking

Notice of restocking has been accepted.

We've sent an e-mail to you.
If you cannot find the mail, please check your spam folder.
When receiving a notification, you may not be able to receive it due to reasons such as the mail server capacity being exceeded. Please confirm it.

Please allow the domains 「thebase.in」&「nishoko.com」so that you can receive our e-mail

Report

最大出力電力(W)50 入力電圧範囲(V)AC85～265/DC120～370 外形寸法(幅W×高さH×奥行D)(mm)26.5×82×120 用途コンピューター・通信・計測・FA・半導体 仕様ROHS指令対応、82mm 15Wから1500Wまで高さを82mmに統一。2Uラックにも搭載可能。 形状カバー付き 質量(g)280 適合規格雑音端子電圧、雑音電界強度：EN55011/EN55022-B、FCC-B、VCCI-B準拠 端子形状ねじ 耐電圧入力-FG、入力-出力/2kVAC(20mA)、入力-出力/3kVAC(20mA)、出力-FG/500VAC(100mA)各1分間 出力電流(A)(最大)10 保存温度(℃)-30～+85 冷却方式自然空冷 機能過電圧保護・過電流保護 絶縁抵抗(MΩ)100以上(出力-FG間：500VDC、25℃、70%RH) 定格出力電力(W)50 入力周波数(Hz)47～63 安全規格UL60950-1、CSA C22.2 No.69050-1、EN60950-1、EN50178各認定、電気用品安全法準拠、UL508、CSA C22.2 No.14-M95 各認定 耐振動非動作時/10～55Hz(掃引1分間)19.6m/s2一定X、Y、Z各方向1時間 定格出力電圧(V)DC5 過電流保護10.5A～ 動作温度(℃)-10～+70(-10～+50/100%、+60/60%、+70/20%) 保存湿度(%)10～95RH(結露なきこと) 過電圧保護DC6.25V～DC7.25V 高調波電流規制IEC61000-3-2準拠 耐衝撃非動作時/10～55Hz(掃引1分間)19.6m/s2一定X、Y、Z各方向1時間 動作湿度(%RH)30～90(結露なきこと)
